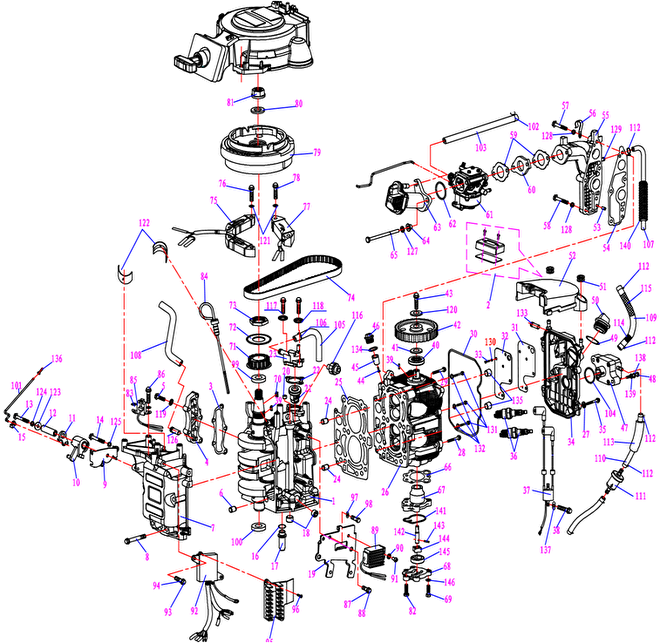

Hidea / Nimarine (F9.9 - Power System)
Trustwatersport heeft onlangs de onderdelen voorraad van Hidea Marine overgenomen. Deze onderdelen zijn, naast de Hidea Buitenboordmotoren, ook te gebruiken in de Nimarine Buitenboordmotoren.
Nimarine Buitenboordmotoren zijn in feite Hidea Buitenboordmotoren en komen dan ook uit de Hidea fabrieken in China. De onderdelen zijn verder te gebruiken in de Parsun Buitenboordmotoren en veelal ook in de Yamaha Buitenboordmotoren.
Momenteel worden de onderdelen in onze webshop geplaatst. Staat uw onderdeel er nog niet in, laat het ons dan even weten zodat we hier actie op kunnen nemen.
Nr | Onderdeel | Omschrijving | # |
1 | F9.9-01.01.00.08 | crankcase comp | 1 |
2 | 60F-01.02.00.13 | time houring | 1 |
3 | F9.9-01.01.00.05 | side cover gasket | 1 |
4 | F9.9-01.01.00.04 | side cover,exhaust | 1 |
5 | GB/T5783 | bolt | 5 |
6 | F9.9-01.01.00.11 | pin | 4 |
7 | F9.9-01.01.00.09 | crankcase cover | 1 |
8 | GB/T5789 | bolt M8*65 | 6 |
9 | F9.9-01.01.00.14 | seat,throttle cable cam | 1 |
10 | F9.9-01.01.00.15 | pulley | 1 |
11 | F9.9-01.01.00.16 | connecting block, throttle | 1 |
12 | F9.9-01.01.00.18 | bushing | 1 |
13 | GB/T5783 | bolt | 1 |
14 | GB/T5783 | Bolt | 1 |
15 | 15F-01.02.07 | joint,chock lever | 1 |
16 | F15-01.01.00.15 | O-ring | 1 |
17 | F15-01.01.01.00 | Flood valve comp. | 1 |
18 | F9.9-01.01.00.07 | Plug | 2 |
19 | F9.9-01.06.00.08 | Electrical appliance bracket | 1 |
20 | F15-01.01.00.07 | Plug | 1 |
21 | F15-01.01.00.14 | Thermostat 60° | 11 |
22 | F9.9-01.01.00.01 | gasket | 1 |
23 | F9.9-01.01.00.02 | Thermostat cap | 1 |
24 | F15-01.01.00.18 | Cushion tube | 2 |
25 | F9.9-01.03.02.00 | Cylinder Gasket | 1 |
26 | F9.9-01.03.00.16 | Cylinder head | 1 |
27 | GB/T848 | Flange bolt | 4 |
28 | F9.9-01.03.00.14 | Bolt | 2 |
29 | F9.9-01.03.00.15 | Rubber seal ring | 4 |
30 | F9.9-01.03.00.11 | Gasket,Air flue cover plate | 1 |
31 | F9.9-01.03.00.13 | cover plate,Air flue | 1 |
32 | F9.9-01.03.00.12 | Pan head bolt with cross recess | 1 |
33 | GB/T818 | Cover,Cylinder head | 5 |
34 | F9.9-01.03.00.10 | Bolt | 1 |
35 | GB/T5783 | Spark Plug | 4 |
36 | BR6HS | Ignition coil | 2 |
37 | F9.9-01.06.00.06 | Bolt | 1 |
38 | GB/T5783 | Woodruff key | 2 |
39 | GB/T1099 | Oil seal comp.,Camshaft | 2 |
40 | F15-01.03.00.16 | Flat gasket | 1 |
41 | GB/T95 | Driven pulley | 1 |
42 | F15-01.03.00.24 | Flange bolt | 1 |
43 | GB/T5789 | Bolt | 1 |
44 | GB/T818 | Anode | 1 |
45 | F9.9-01.03.00.34 | Flange bolt | 1 |
46 | F9.9-01.03.00.35 | Fuel pump assy. | 1 |
47 | F9.9-01.04.01.00 | Bolt | 1 |
48 | GB/T823 | screw | 2 |
49 | F4-01.06.27 | O ring | 1 |
50 | F15-01.03.00.39 | Oil filling plug | 1 |
51 | F9.9-01.03.00.08 | Damper | 2 |
52 | F9.9-01.03.00.07 | Drive pulley cover | 1 |
53 | F9.9-01.03.00.05 | Dowel pin | 2 |
54 | F9.9-01.03.00.06 | Air intake manifold gasket | 1 |
55 | F9.9-01.03.00.04 | Air intake manifold | 1 |
56 | F15-01.03.00.42 | fix clip,air breather tube | 1 |
57 | GB/T5783 | Bolt | 3 |
58 | GB/T5783 | Bolt | 2 |
59 | F9.9-01.04.00.02 | Carburetor washer | 2 |
60 | F9.9-01.04.00.03 | Insulator | 1 |
61 | F9.9-01.04.00.01 | Carburetor assembly | 1 |
62 | F9.9-01.03.00.03 | O-ring | 1 |
63 | F9.9-01.03.01.00 | Air cleaner | 1 |
64 | F9.9-01.03.00.02 | Cushion tube | 2 |
65 | GB/T5783 | Bolt | 2 |
66 | F9.9-01.05.01.07 | Gasket(oil pump) | 1 |
67 | F9.9-01.05.01.06 | Oil pump housing | 1 |
68 | F9.9-01.05.01.05 | Oil pump cap | 1 |
69 | GB/T5783 | Bolt | 3 |
70 | F4-01.06.19 | Woodruff key | 1 |
71 | F9.9-01.02.00.10 | Drive pulley | 1 |
72 | F9.9-01.02.00.08 | Stop collar,drive pully | 1 |
73 | F9.9-01.02.00.09 | Bolt,drive pully | 1 |
74 | F9.9-01.03.00.09 | belt | 1 |
75 | F9.9-01.06.00.12 | Lighting coil | 1 |
76 | GB/T5783 | Bolt | 4 |
77 | F9.9-01.06.00.13 | Charging coil | 1 |
78 | GB/T5783 | Bolt | 2 |
79 | F9.9-01.06.00.01 | Flying wheel | 1 |
80 | 15F-01.03.20 | Plane washer | 1 |
81 | 15F-01.03.19 | Flywheel nut | 1 |
82 | GB/T823 | screw | 2 |
83 | GB/T848 | gasket | 3 |
84 | F9.9-01.05.05.00 | Oil dip stick | 1 |
85 | F9.9-01.06.00.10 | Impulsor s | 1 |
86 | GB/T5783 | Bolt | 2 |
87 | GB/T848 | Flat gasket | 2 |
88 | GB/T5783 | Bolt | 2 |
89 | F15-01.06.07.00 | Rectifier | 1 |
90 | GB/T848 | gasket | 1 |
91 | GB/T818 | Cross recessed countersunk head screw | 1 |
92 | F9.9-01.06.00.03 | CDI | 1 |
93 | GB/T5783 | Bolt | 2 |
94 | GB/T848 | gasket | 2 |
95 | F9.9-01.06.00.04 | Patching jack | 1 |
96 | GB/T845 | Cross recessed pan head tapping screws | 2 |
97 | GB/T97.1 | Gasket | 1 |
98 | GB/T5783 | Flat gasket | 1 |
99 | F9.9-01.01.00.12 | Oil seal | 1 |
100 | F9.9-01.01.00.13 | Oil seal | 1 |
101 | F9.9-01.04.00.04 | Carburetor connecting rod | 1 |
102 |
| Clamp | 1 |
103 | F9.9-01.03.00.01 | Breather pipe | 1 |
104 | F15-01.04.01.10 | O-ring | 1 |
105 | F9.9-01.01.00.03 | Hose | 1 |
106 |
| #N/B | 1 |
107 | F9.9-02.00.00.10 | Hose | 1 |
108 | F9.9-01.01.00.20 | Hose | 1 |
109 | F9.9-01.04.00.07 | Fuel hose | 1 |
110 | F9.9-01.04.00.10 | Fuel hose | 1 |
111 | F9.9-01.04.03.00 | Fuel filter | 1 |
112 |
| clamp | 5 |
113 | F9.9-01.04.00.11 | rubber hose | 1 |
114 | F9.9-01.04.00.08 | wave hose | 1 |
115 | F9.9-02.00.00.16 | wave hose | 1 |
116 | F9.9-01.06.00.15 | oil alarm | 1 |
117 | GB/T5783 | bolt | 2 |
118 | GB/T848 | gasket | 2 |
119 | GB/T848 | gasket | 5 |
120 | GB/T5287 | big gasket | 1 |
121 | GB/T848 | gasket | 6 |
122 | F9.9-01.01.00.10 | Main bearing | 4 |
123 | F9.9-01.01.00.17 | Flat gasket | 1 |
124 | GB/T848 | Flat gasket | 1 |
125 | GB/T848 | Flat gasket | 1 |
126 | F15-01.01.02.02 | Oil inlet | 1 |
127 | GB/T848 | Flat gasket | 2 |
128 | GB/T848 | Flat gasket | 5 |
129 | F4-01.06.03 | Joint,Breather pipe | 1 |
130 | GB/T848 | Flat gasket | 5 |
131 | GB/T5783 | Bolt | 3 |
132 | GB/T848 | Flat gasket | 3 |
133 | F4-01.06.03 | Joint,Breather pipe | 1 |
134 | F9.9-01.03.00.33 | O ring | 1 |
135 | F15-01.01.00.08 | Plug | 2 |
136 | F9.9-01.04.00.05 | Cap,Rod | 1 |
137 | GB/T848 | Flat gasket | 2 |
138 | GB/T93 | washer | 2 |
139 | GB/T97.1 | Flat gasket | 2 |
140 | F9.9-01.04.00.08 | Waveform pipe | 1 |
141 | F15-01.05.02.04 | sealing | 1 |
142 | F9.9-01.05.01.01 | shaft,rotor | 1 |
143 | GB/T309 | needle | 1 |
144 | F9.9-01.05.01.02 | inner rotor | 1 |
145 | F9.9-01.05.01.03 | outer rotor | 1 |
146 | GB/T848 | Flat gasket | 3 |
