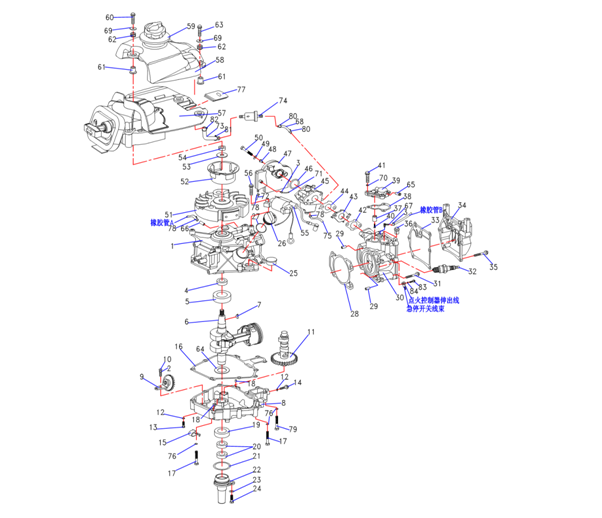

Hidea / Nimarine (F2.5 - Power System)
Trustwatersport heeft onlangs de onderdelen voorraad van Hidea Marine overgenomen. Deze onderdelen zijn, naast de Hidea Buitenboordmotoren, ook te gebruiken in de Nimarine Buitenboordmotoren.
Nimarine Buitenboordmotoren zijn in feite Hidea Buitenboordmotoren en komen dan ook uit de Hidea fabrieken in China. De onderdelen zijn verder te gebruiken in de Parsun Buitenboordmotoren en veelal ook in de Yamaha Buitenboordmotoren.
Momenteel worden de onderdelen in onze webshop geplaatst. Staat uw onderdeel er nog niet in, laat het ons dan even weten zodat we hier actie op kunnen nemen.
| Nr | Onderdeel | Omschrijving | # |
| 1 | F2.5-01.01.00.11 | Crankcase comp.(ex. crankcase cover) | 1 |
| 2 | GB97.1 | Flat gasket | 1 |
| 3 | Clamp | 2 | |
| 4 | F4-01.06.15.02 | Oil seal | 1 |
| 5 | F2.5-01.01.00.09 | Bearing | 1 |
| 6 | F2.5-01.02.00.00 | #N/B | 1 |
| 7 | F4-01.06.19 | Woodruff key | 1 |
| 8 | F2.5-01.01.00.07 | Crankcase cover | 1 |
| 9 | F2.5-01.01.02.00 | Oilgear assy. | 1 |
| 10 | GB5783 | Bolt | 1 |
| 11 | F2.5-01.03.02.00 | Oil seal comp.,Camshaft | 1 |
| 12 | F2.5-01.01.00.04 | Copper gasket | 2 |
| 13 | F2.5-01.01.00.02 | Oil Drain Plug (M8 x 20) | 1 |
| 14 | GB5783 | Bolt | 1 |
| 15 | F15-01.03.00.42 | fix clip,air breather tube | 1 |
| 16 | F2.5-01.01.00.08 | Crankcase Gasket | 1 |
| 17 | GB5783 | Bolt | 8 |
| 18 | 15F-06.03.08 | Dowel pin | 2 |
| 19 | F4-01.06.15.02 | Oil seal | 1 |
| 20 | F2.5-01.01.00.06 | Oil seal | 2 |
| 21 | F4-01.06.15.04 | O-ring | 1 |
| 22 | F2.5-01.01.00.05 | Casing, Oil Seal | 1 |
| 23 | GB848 | Flat gasket | 1 |
| 24 | GB5783 | Bolt | 1 |
| 25 | F2.5-01.01.01.00 | Oil level sight glass | 1 |
| 26 | F15-01.03.00.39 | Oil Filling Plug | 1 |
| 27 | F4-01.06.27 | O ring | 1 |
| 28 | F2.5-01.03.01.00 | Cylinder gasket comp. | 1 |
| 29 | 15F-06.03.08 | Dowel pin | 2 |
| 30 | F2.5-01.03.00.06 | Cylinder head | 1 |
| 31 | GB5789(10.9/S10) | Flange bolt | 4 |
| 32 | BR6HS | Spark Plug | 1 |
| 33 | F2.5-01.03.00.02 | Cylinder Cover Gasket | 1 |
| 34 | F2.5-01.03.00.01 | Cylinder cover | 1 |
| 35 | GB5789(10.9) | Flange bolt | 6 |
| 36 | F15-01.06.14-60° | Thermostat 60° | 1 |
| 37 | F4-01.06.30 | Anode | 1 |
| 38 | F4-01.06.28 | Gasket | 1 |
| 39 | F2.5-01.03.00.03 | Thermostat cap | 1 |
| 40 | GB/T818 | Pan head screw with cross recess | 1 |
| 41 | GB5783 | Bolt | 3 |
| 42 | F2.5-01.04.02.08 | Caburetor gasket (out) | 1 |
| 43 | F2.5-01.04.02.09 | Insulation Board | 1 |
| 44 | F2.5-01.04.02.10 | Caburetor gasket (in) | 1 |
| 45 | F2.5-01.04.02.00 | Carburetor | 1 |
| 46 | F2.5-01.04.00.01 | O ring | 1 |
| 47 | F2.5-01.04.03.00 | Air intake arrestor | 1 |
| 48 | F2.5-01.04.00.02 | Cushion tube | 2 |
| 49 | GB848 | Flat gasket | 2 |
| 50 | GB5783 | Bolt | 2 |
| 51 | F2.5-01.05.01.00 | Flying wheel | 1 |
| 52 | F2.5-01.06.00.18 | Starter pulley | 1 |
| 53 | F4-01.06.38 | Plane washer | 1 |
| 54 | F4-01.06.37 | Flywheel nut | 1 |
| 55 | F2.5-01.05.02.00 | CDI (Charging coil, spark plug lead assy.) | 1 |
| 56 | GB/T5789(10.9) | Bolt | 2 |
| 57 | F2.5-01.06.00.00 | Starter cover assy. | 1 |
| 58 | F2.5-01.04.01.02 | Fuel tank | 1 |
| 59 | F4-01.07.01.03 | Damper ring,fuel tank | 1 |
| 60 | GB5783 | Bolt | 1 |
| 61 | F2.5-01.04.01.05 | Washer,fuel tank | 3 |
| 62 | F2.5-01.04.01.04 | Damper, Fuel Tank | 3 |
| 63 | GB5783 | Bolt | 2 |
| 64 | F2.5-01.01.00.10 | Crankshaft shim | 1 |
| 65 | F4-01.06.03 | Joint,Breather pipe | 1 |
| 66 | 15F-01.06.21 | Joint,air breather tube | 1 |
| 67 | 15F-01.06.10 | joint,water hose | 1 |
| 68 | oil hose | 1 | |
| 69 | F2.5-01.04.01.01 | Washer | 3 |
| 70 | GB848 | Flat gasket | 3 |
| 71 | F2.5-01.04.00.04 | Rubber hose | 1 |
| 72 | F2.5-01.04.00.03 | Rubber hose | 1 |
| 73 | F2.5-01.04.02.06 | Fuel line | 1 |
| 74 | F9.9-01.04.03.00 | Fuel Filter | 1 |
| 75 | F2.5-01.04.02.05 | Fuel line | 1 |
| 76 | GB/T848 | Flat gasket | 10 |
| 77 | F2.5-01.04.02.07 | fixing sleeve,hose | 1 |
| 78 | Clamp | 3 | |
| 79 | GB5783 | Bolt | 2 |
| 80 | Clamp | 2 | |
| 81 | Clamp | 1 | |
| 82 | Clamp | 1 | |
| 83 | GB5783 | Bolt | 1 |
| 84 | GB848 | Flat gasket | 1 |
