Hidea / Nimarine (F9.9 - Lower Casing)
Trustwatersport heeft onlangs de onderdelen voorraad van Hidea Marine overgenomen. Deze onderdelen zijn, naast de Hidea Buitenboordmotoren, ook te gebruiken in de Nimarine Buitenboordmotoren.
Nimarine Buitenboordmotoren zijn in feite Hidea Buitenboordmotoren en komen dan ook uit de Hidea fabrieken in China. De onderdelen zijn verder te gebruiken in de Parsun Buitenboordmotoren en veelal ook in de Yamaha Buitenboordmotoren.
Momenteel worden de onderdelen in onze webshop geplaatst. Staat uw onderdeel er nog niet in, laat het ons dan even weten zodat we hier actie op kunnen nemen.

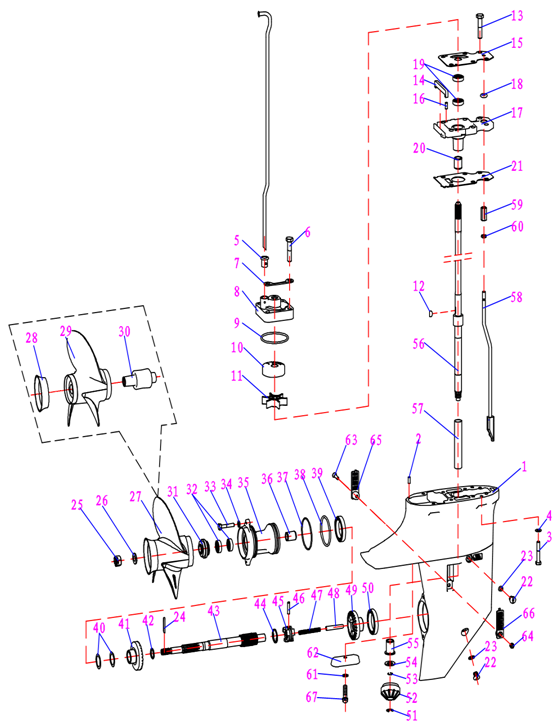

Nr | Onderdeel | Omschrijving | # |
1 | F9.9-06.00.00.13 | lower case | 1 |
2 | 15F-06.03.08 | dowel pin | 2 |
3 | GB/T5783 | bolt | 4 |
4 | GB/T848 | washer | 4 |
5 | 15F-06.02.06 | gasket,water piper | 1 |
6 | GB/T5783 | bolt M8*45 | 4 |
7 | 15F-06.02.07 | fix plate,water pump | 2 |
8 | 15F-06.02.01 | water pump | 1 |
9 | 15F-06.02.02 | O ring,water pump | 1 |
10 | 15F-06.02.03 | Insert, Cartridge | 1 |
11 | F9.9-06.05.00.00 | impeller assy | 1 |
12 | 15F-06.01.09 | woodruff key | 1 |
13 | GB/T5783 | bolt M8*25 | 2 |
14 | 15F-06.03.04 | sealing strip,bearing seat | 1 |
15 | F9.9-06.01.00.01 | Plate, Water Pump | 1 |
16 | 15F-06.03.08 | dowel pin | 2 |
17 | F9.9-06.01.00.05 | Bearing seat casing | 1 |
18 | 15F-06.03.03 | Shift lever o-ring | 1 |
19 | F9.9-06.01.00.03 | Oil seal | 2 |
20 | F9.9-06.01.00.04 | Oil Bearing | 1 |
21 | F9.9-06.01.00.06 | Gasket,bearing seat | 1 |
22 | 15F-06.01.03 | plug,straight screw | 2 |
23 | 15F-06.01.04 | Gasket | 2 |
24 | GB/T91 | plug,straight screw | 1 |
25 | 15F-06.14.06 | Gasket | 1 |
26 | GB/T96 | Cotter pin | 1 |
27 | F9.9-06.03.00.00 | Nut | 1 |
28 | F9.9-06.03.00.02 | Flat gasket | 1 |
29 | F9.9-06.03.00.01 | propeller | 1 |
30 | F9.9-06.03.00.03 | propeller shaft teeth | 1 |
31 | F9.9-06.00.00.24 | bushing | 1 |
32 | F9.9-06.02.00.04 | oil seal | 2 |
33 | GB/T5783 | bolt | 2 |
34 | GB/T848 | washer | 2 |
35 | F9.9-06.02.00.07 | cap,lower casing | 1 |
36 | F9.9-06.02.00.03 | Oil Bearing | 1 |
37 | F9.9-06.02.00.06 | O ring (big) | 1 |
38 | F9.9-06.02.00.05 | O ring (small) | 1 |
39 | F9.9-06.00.00.15 | bearing | 1 |
40 | F9.9-06.02.00.02 | reverse gear | 2 |
41 | F9.9-06.02.00.01 | shim,reverse gear | 1 |
42 | F9.9-06.00.00.23 | washer | 1 |
43 | F9.9-06.00.00.22 | propeller shaft teeth | 1 |
44 | F9.9-06.00.00.20 | circlip | 1 |
45 | F9.9-06.00.00.21 | dog clutch | 1 |
46 | F9.9-06.00.00.19 | pin | 1 |
47 | F9.9-06.00.00.18 | compression spring | 1 |
48 | F9.9-06.00.00.17 | gear shif plug | 1 |
49 | F9.9-06.00.00.16 | forward gear | 1 |
50 | F9.9-06.00.00.15 | bearing | 1 |
51 | GB/T896 | circlip | 1 |
52 | F9.9-06.00.00.11 | driving bearing | 1 |
53 | F4-06.11.02 | Circlip,spring | 1 |
54 | F9.9-06.00.00.10 | adjuster,driving bearing | 1 |
55 | F9.9-06.00.00.07 |
| 1 |
56 | F9.9-06.00.00.08-S | Driving Shaft(S) | 1 |
F9.9-06.00.00.08-L | Driving Shaft(L) | ||
57 | F9.9-06.00.00.06 | Nylon Collar | 1 |
58 | F9.9-06.04.00.00-S | Shift Cam Assy (S) | 1 |
F9.9-06.04.00.00-L | Shift Cam Assy (L) | ||
59 | 15F-06.04.05 | Connector, Shift Rod | 1 |
60 | GB/T6172 | Nut | 1 |
61 | GB/T861.1 | Washer, Internal tooth | 1 |
62 | F9.9-06.00.00.14 | Anode | 1 |
63 | GB/T820 | Screw, Countersunk | 1 |
64 | DIN985 | Nut, Nylon | 1 |
65 | 15F-06.01.05 | Cover, Water inlet A | 1 |
66 | 15F-06.01.06 | Cover, Water inlet B | 1 |
67 | GB/T5789 | Bolt | 1 |
| F9.9-06.00.00.00-I | lower Unit assembly(S) | 1 |
| F9.9-06.00.00.00-II | lower Unit assembly(L) | 1 |
15F-06.02.03 - Insert, Cartridge€ 19,95
15F-06.14.06 - Propellor Nut€ 6,95
F9.9-06.00.00.24 - Bushing€ 39,95
 | |
