Hidea / Nimarine (F25 - Lower Casing)
Trustwatersport heeft onlangs de onderdelen voorraad van Hidea Marine overgenomen. Deze onderdelen zijn, naast de Hidea Buitenboordmotoren, ook te gebruiken in de Nimarine Buitenboordmotoren.
Nimarine Buitenboordmotoren zijn in feite Hidea Buitenboordmotoren en komen dan ook uit de Hidea fabrieken in China. De onderdelen zijn verder te gebruiken in de Parsun Buitenboordmotoren en veelal ook in de Yamaha Buitenboordmotoren.
Momenteel worden de onderdelen in onze webshop geplaatst. Staat uw onderdeel er nog niet in, laat het ons dan even weten zodat we hier actie op kunnen nemen.

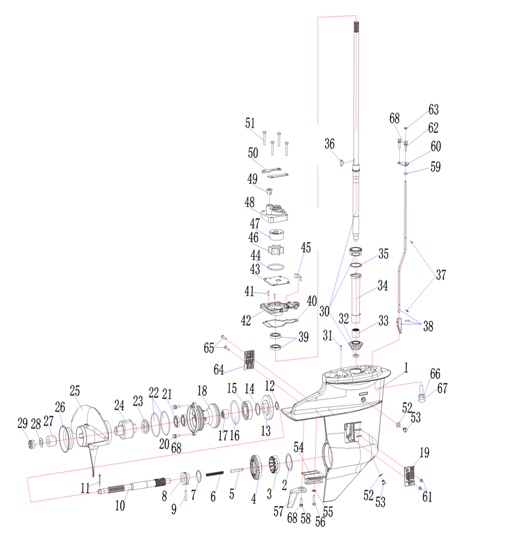

Nr | Onderdeel | Omschrijving | # |
1 | 30F-06.00.00.27 | Lower casing | 1 |
2 | 30F-06.00.00.26 | Shim,forward gear | 1 |
3 | 15F-06.07 | Roller Bearings | 1 |
4 | 30F-06.00.00.22 | Forward gear | 1 |
5 | 30F-06.00.05.06 | Gear shift plunger | 1 |
6 | 30F-06.00.05.05 | Compression spring | 1 |
7 | 15F-06.10.04 | Circlip | 1 |
8 | 30F-06.00.05.02 | Dog clutch | 1 |
9 | 15F-06.10.03 | Clutch pin | 1 |
10 | 30F-06.00.05.01 | Propeller shaft | 1 |
11 | GB91 | Cotter pin | 1 |
12 | 30F-06.00.00.06 | gasket | 1 |
13 | 30F-06.00.04.06 | Reverse gear | 1 |
14 | 30F-06.00.04.05 | shim | 1 |
15 | 30F-06.00.04.04 | deep groove ball bearing | 1 |
16 | 30F-06.00.04.07 | O ring | 1 |
17 | 30F-06.00.04.03 | Needle bearing | 1 |
18 | 30F-06.00.04.01 | Cap,lower casing | 1 |
19 | 30F-06.00.00.05 | cover,water inlet | 1 |
20 | GB5783 | Bolt | 2 |
21 | 30F-06.00.04.02 | Oil seal | 2 |
22 | 30F-06.00.04.08 | O ring | 2 |
23 | 30F-06.00.00.03 | Pad | 1 |
24 | 30F-06.00.02.00 | Propeller shaft teeth assy. | 1 |
25 | 30F-06.00.01.01 | Propeller | 1 |
26 | 30F-06.00.01.02 | Propeller horn | 1 |
27 | 30F-06.00.00.02 | Pad | 1 |
28 | GB97.1 | Flat gasket | 1 |
29 | 30F-06.00.00.01 | Nut | 1 |
30 | 30F-06.00.07.00-S | drive shaft assy | 1 |
31 | 15F-06.03.08 | Dowel pin | 1 |
32 | 30F-06.00.00.21 | Driving wheel | 1 |
33 | 30F-06.00.00.28 | Needle bearing | 1 |
34 | 30F-06.00.00.29 | Nylon bushing | 1 |
35 | 30F-06.00.00.25 | shim | 1 |
36 | 40F-06.09.02 | Woodruff key | 1 |
37 | GB879 | Cylindrical pin | 2 |
38 | 30F-06.00.06.00-S | Gear shift cam lever (S) | 1 |
39 | 40F-06.04.04 | Oil seal | 2 |
40 | 30F-06.00.00.19 | Rubber seal ring | 1 |
41 | 15F-06.03.08 | Dowel pin | 2 |
42 | 30F-06.00.00.20 | Bearing seat | 1 |
43 | 30F-06.00.00.13 | Plate,water pump | 1 |
44 | 30F-06.00.00.12 | O-ring,Water pump casing | 1 |
45 | 30F-06.00.00.16 | Sealing strip,bearing seat | 1 |
46 | 40F-06.09.00 | Impeller assy. | 1 |
47 | 30F-06.00.00.11 | Insert, cartridge | 1 |
48 | 30F-06.00.00.10 | Casing,water pump | 1 |
49 | 30F-06.00.00.09 | Seal ring,hose | 1 |
50 | 30F-06.00.00.08 | Baffle,water pump | 2 |
51 | GB5783 | Bolt | 4 |
52 | 15F-06.01.04 | Gasket | 2 |
53 | 15F-06.01.03 | plug,straight screw | 2 |
54 | 15F-06.15 | Anode | 1 |
55 | GB861.1 | Washer,inner gear | 1 |
56 | GB5783 | Bolt | 1 |
57 | 30F-06.00.03.00 | Heading trim tab assembly | 1 |
58 | GB5783 | Bolt | 1 |
59 | 15F-06.03.03 | Shift lever o-ring | 1 |
60 | 30F-06.00.00.15 | Gearshift cam plate | 1 |
61 | DIN985 | Bolt | 2 |
62 | GB5783 | Hexagonal nut | 2 |
63 | GB6170 | Hexagonal nut | 1 |
64 | 30F-06.00.00.04 | Water inlet cover | 1 |
65 | GB819 | Cross recessed countersunk head screw | 2 |
66 | GB848 | Flat gasket | 4 |
67 | 30F-00.00.00.01 | Bolt | 4 |
68 | GB97.1 | Flat gasket | 5 |
| F25 | Lower unit assy. (S) | 1 |
| F25 | Lower unit assy.(L) | 1 |
15F-06.07 - Roller Bearings€ 39,95
30F-06.00.00.22 - Forward Gear€ 94,95
30F-06.00.00.28 - Needle Bearing€ 34,95
- 30F-06.00.04.03 - Needle Bearing€ 34,95
 | |
