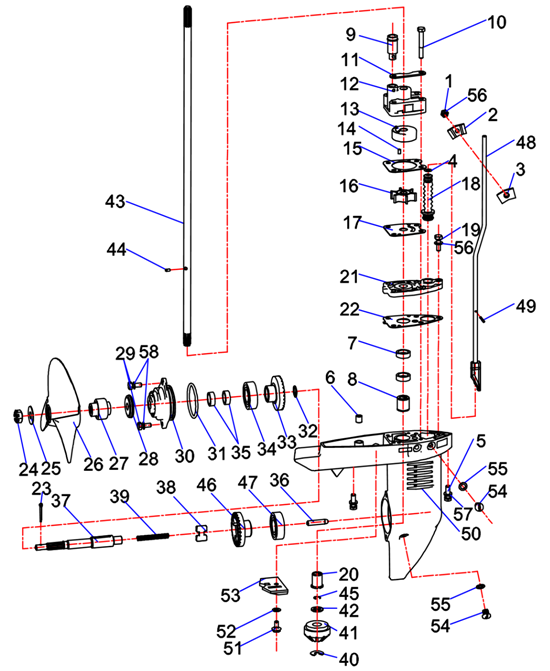

Hidea / Nimarine (F6.0 - Lower Casing - S)
Trustwatersport heeft onlangs de onderdelen voorraad van Hidea Marine overgenomen. Deze onderdelen zijn, naast de Hidea Buitenboordmotoren, ook te gebruiken in de Nimarine Buitenboordmotoren.
Nimarine Buitenboordmotoren zijn in feite Hidea Buitenboordmotoren en komen dan ook uit de Hidea fabrieken in China. De onderdelen zijn verder te gebruiken in de Parsun Buitenboordmotoren en veelal ook in de Yamaha Buitenboordmotoren.
Momenteel worden de onderdelen in onze webshop geplaatst. Staat uw onderdeel er nog niet in, laat het ons dan even weten zodat we hier actie op kunnen nemen.
Nr | Onderdeel | Omschrijving | # |
1 | GB/T5783 | Bolt M6*20 | 1 |
2 | F4-06.22 | Shift cam locker B | 1 |
3 | F4-06.23 | Shift cam locker A | 1 |
4 | F4-06.16 | Spring,rubber ring | 1 |
5 | GB/T5783 | Bolt M6*40 | 2 |
6 | F4-06.27 | Dowel pin | 2 |
7 | F4-01.06.15.03 | Oil seal B10.8*21*7 | 2 |
8 | F4-06.01.03 | Oil Bearing | 1 |
9 | F4-06.21.04 | Seal ring(lower),hose | 1 |
10 | GB/T5783 | Bolt M6*45 | 4 |
11 | F4-06.20 | Plate,water pump | 2 |
12 | F4-06.21.01 | Water pump housing assy. | 1 |
13 | F4-06.21.02 | Insert, Cartridge | 1 |
14 | F4-06.19 | Pin,water pump base | 2 |
15 | F4-06.18 | Gasket,water pump | 1 |
16 | F4-06.21.03.00 | Impeller assy. | 1 |
17 | F4-06.17 | Plate,water pump | 1 |
18 | F4-06.15 | Rubber seal ring | 1 |
19 | GB/T5783 | Bolt M6*25 | 1 |
20 | F4-06.01.04 | Oil Bearing | 1 |
21 | F4-06.14 | Water pump base | 1 |
22 | F4-06.13 | Gasket,water pump base | 1 |
23 | GB91 | Cotter pin (2.5*20) | 1 |
24 | F4-06.26 | Nut | 1 |
25 | GB/T96.1-2000 | Flat gasket | 1 |
26 | F6-06.00.00.00 | Propeller(7-1/2*8) | 1 |
27 | F4-06.25.02.00 | Propeller shaft teeth assy | 1 |
28 | F4-06.24 | Propeller heel | 1 |
29 | GB/T5783 | Bolt M6*16 | 2 |
30 | F4-06.07.01 | Cap,lower casing | 1 |
31 | F4-06.07.03 | O ring,lower casing | 1 |
32 | F4-06.05 | Gasket | 1 |
33 | F4-06.06 | Reverse gear | 1 |
34 | F9.9-06.00.00.15 | Bearing 6004C2 | 1 |
35 | F4-06.07.02 | Oil seal 22*13*7 | 2 |
36 | F4-06.04.04 | Gear shift plunger | 1 |
37 | F4-06.04.01 | Propeller shaft | 1 |
38 | F4-06.04.03 | Dog clutch | 1 |
39 | F4-06.04.02 | Compression spring | 1 |
40 | GB896.6 | Circlip | 1 |
41 | F4-06.08 | Driving wheel | 1 |
42 | F4-06.09 | Adjuster,Driving wheel | 1 |
43 | F4-06.11.01-S | Drive shaft(short shaft) | 1 |
44 | F4-06.11.03 | Drive shaft pin | 1 |
45 | F4-06.11.02 | Flexible retainer ring (for shaft) | 1 |
46 | F4-06.03 | Forward gear | 1 |
47 | F9.9-06.00.00.15 | Bearing 6004C2 | 1 |
48 | F4-06.12.00-S | Gear shift cam (short shaft) | 1 |
49 | GB879 | Flexible cylinder pin (2.5*20) | 1 |
50 | F4-06.01.01 | Lower casing | 1 |
51 | GB/T5783 | Bolt M6*12 | 1 |
52 | GB/T861.1 | Serrated locking washer 6 | 1 |
53 | F4-06.02 | Anode B | 1 |
54 | 15F-06.01.03 | Plug screw | 3 |
55 | 15F-06.01.04 | Plug screw gasket | 3 |
56 | GB/T97.1 | Flat gasket 6 | 4 |
57 | GB/T848 | Flat gasket 6 | 2 |
|
| Lower casing assy | 1 |
