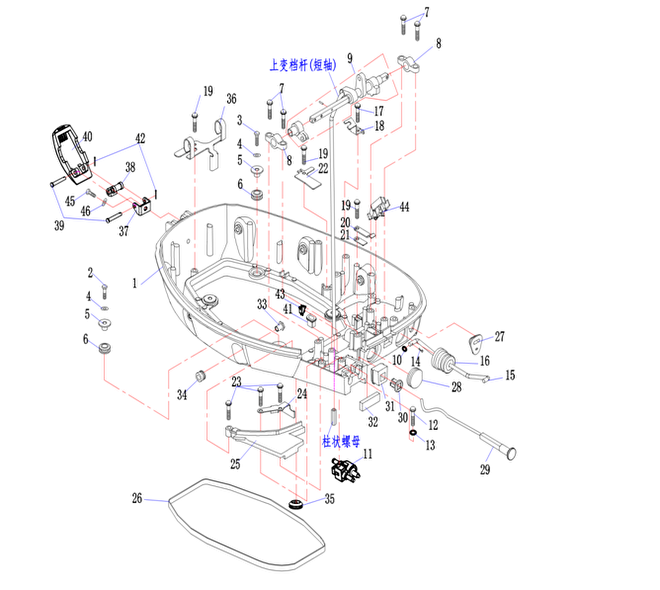

Hidea / Nimarine (F15 - Bottom Cowling)

Nr

Onderdeel

Omschrijving

#

1

F15-Ⅱ-02.00.00.01

Botton Base

1

2

GB5783

Bolt

2

3

GB5783

Bolt

2

4

GB5287

Flat gasket

4

5

15F-02.08

Washer,damping

4

6

15F-02.07

Cushion blocking of bottom seat

4

7

GB5783

Bolt

4

8

F15-02.00.00.07

Bracket

2

9

F15-02.01.00.00

Shift lever

1

10

GB848

Flat gasket

1

11

15F-01.07.01.00

Fuel hose joint assy.

1

12

GB5783

Bolt

1

13

GB848

Flat gasket

1

14

15F-04.08.05

jump ring

1

15

F15-02.00.00.14

Gear shift

1

16

F15-02.00.00.15

Rubber shock ring,handle connceting rod

1

17

GB5789(10.9)

Bolt

1

18

F15-02.00.00.03

Cable fixer

1

19

GB5789

Flange bolt

4

20

F15-02.00.00.05

Shift limit plate

1

21

F15-02.00.00.06

Plate

1

22

F15-02.00.00.02

Press plate

2

23

GB5789(10.9)

Bolt

3

24

F15-02.00.00.11

fixing sleeve,choke pull rod

1

25

F15-02.00.00.10

Top cover,fuel hose joint

1

26

F15-02.00.00.18

Rubber damper strip

1

27

F15-02.00.00.12

Protecting sleeve,steel cable

1

28

15F-02.12

Rubber plug

1

29

F15-02.02.00.00

Pull rod comp.,choke

1

30

15F-02.03

Protecting bush,choke

1

31

F15-02.00.00.16

Rubber block

1

32

F15-02.00.00.09

Rubber seal block

1

33

F15-00.00.00.15

Gasket,damper

6

34

F15-02.00.00.32

Damper

6

35

F4-02.13

Rubber plug

1

36

F15-02.00.00.19

Clip,hose

1

37

F6-02.03.00.00

Connecting, lock handle

1

38

F6-02.00.00.06

Bracket comp. lock handle

1

39

F6-02.00.00.05

Spindle,lock handle

2

40

F9.9-02.00.00.17

Lock handle

1

41

15F-02.10

protecting bush,gear shifting linkage

1

42

GB91

pin

2

43

F15-01.06.00.03

clip

1

44

15F-02.06

Fixer,Throttle cable

1

45

GB5783

Bolt

1

46

GB97.1

Flat gasket

1
